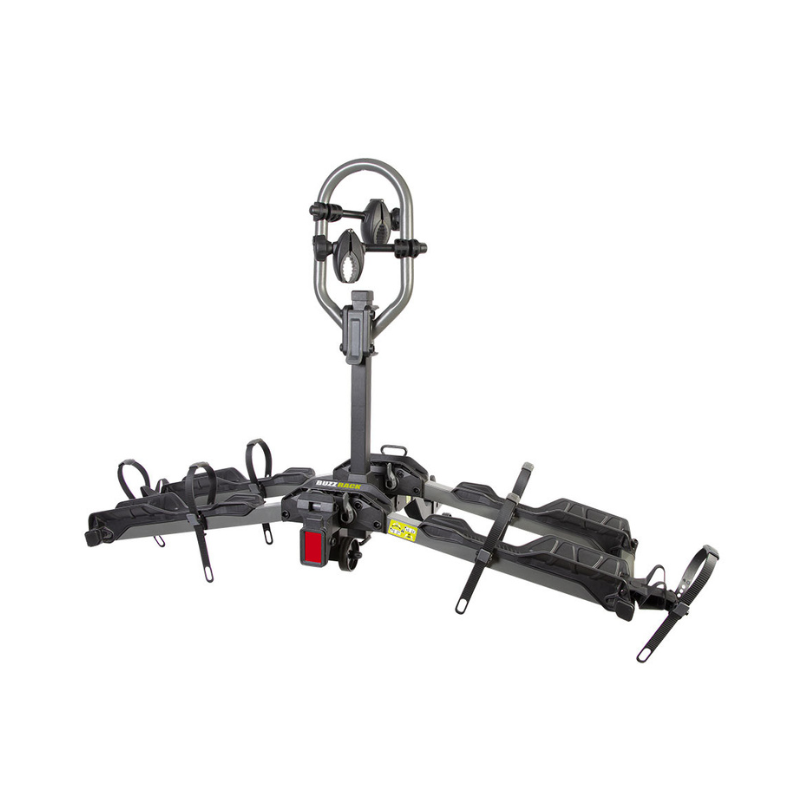

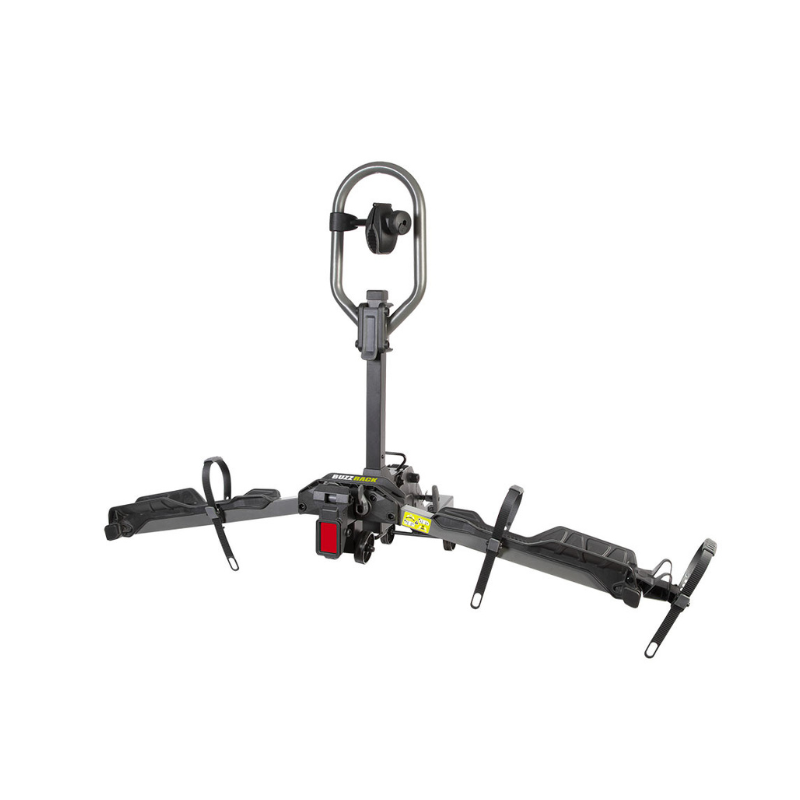

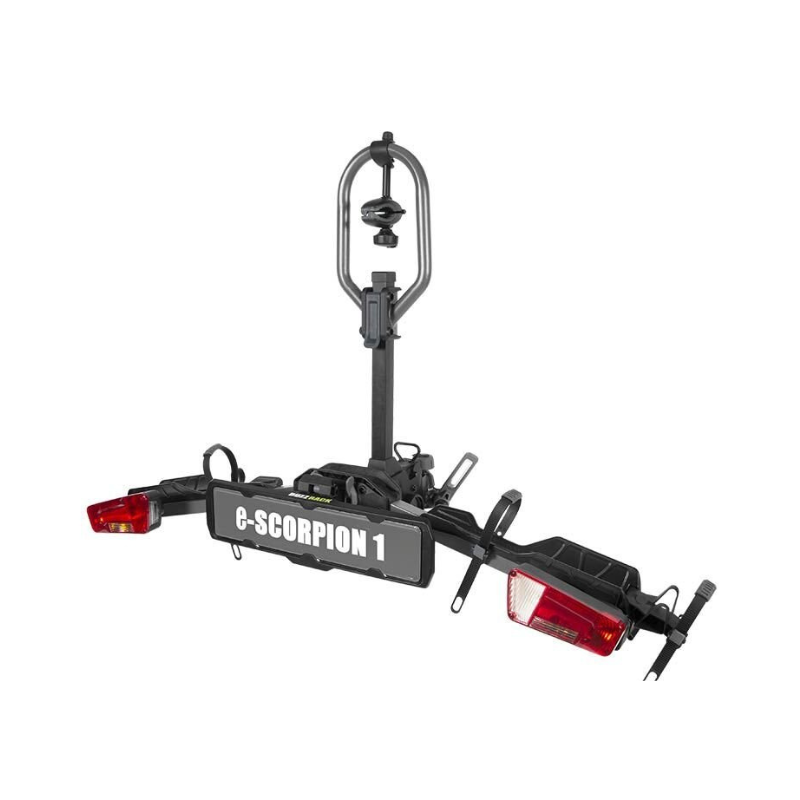

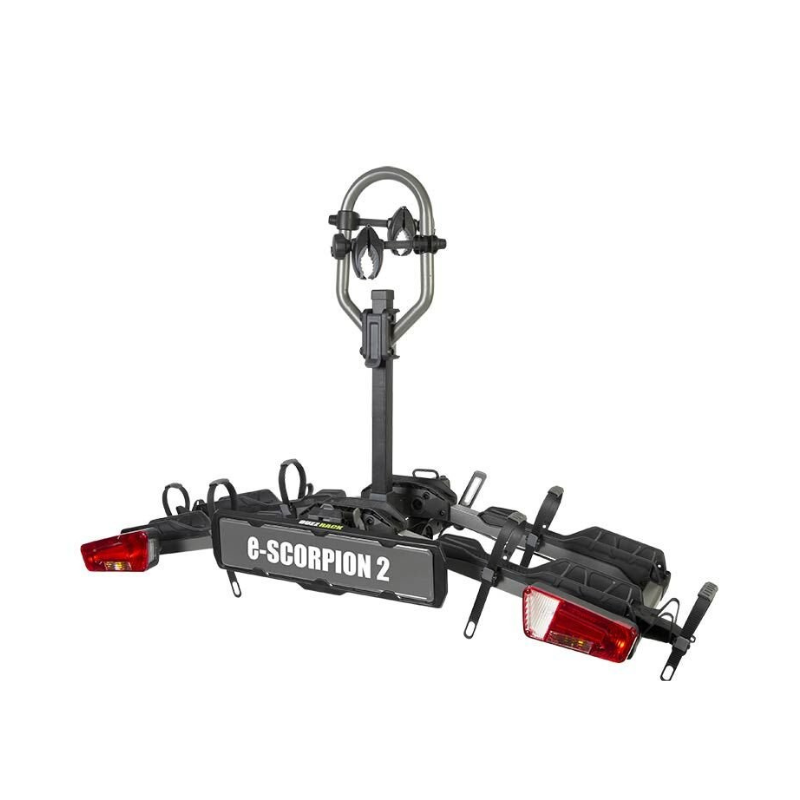

Buzzrack E-Scorpion

In stock
$850.00
Color

When it comes to transporting heavy bikes such as E-bikes, E-SCORPION is the supreme choice.

High load capacity, fully foldable, easy-to-use with great stability, durability and a touch of simplicity in design.

FEATURES

  1. Designed to carry e-bikes and heavy bikes
  2. Carries one or two bikes with max weight 30kg per bike. Max load 60kg
  3. Fits 2” hitch receiver OR 50mm ISO towball
  4. Adjustable upright frame to fit most bike frames.
  5. Locking clamps with pads to secure bike frames from Ø25-50 mm.
  6. Very large wheel trays with strong ratchet straps and protective pads to conveniently secure tyres with width up to 4”.
  7. Anti-sway holders provide better stability for the front wheels.
  8. The rack tilts down for boot access with bikes on.

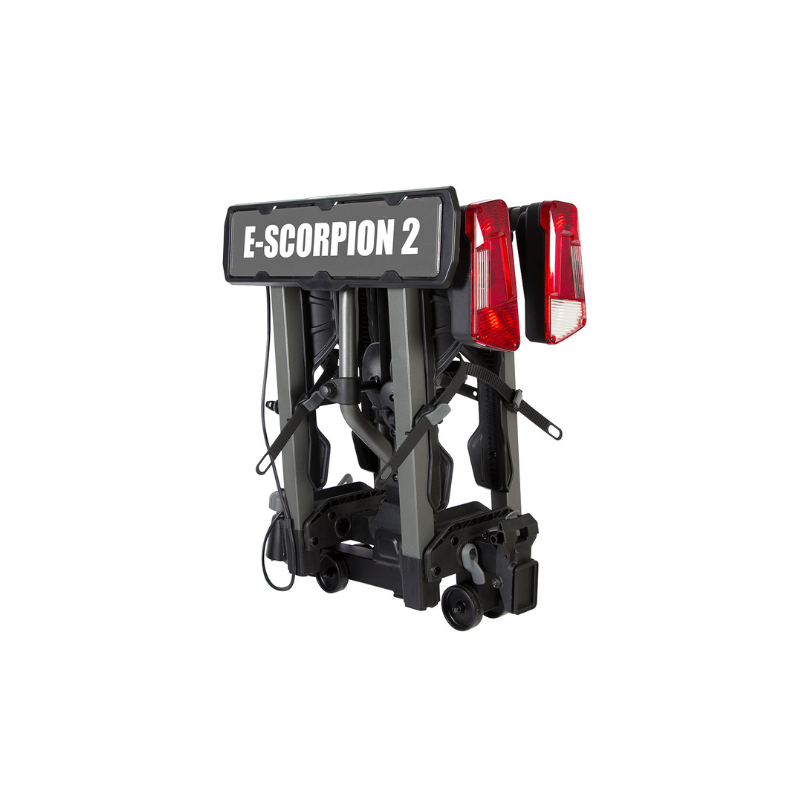

  9. Fully foldable wheel tubes for compact and easy storage.
  10. Roller wheels included for easy and convenient transport of the rack.
  11. Lock your bike to the rack, and your rack to the car hitch receiver.
  12. Locking anti-wobble bolt included.
  13. Safety strap included for extra security.
  14. XP R18-904-4 compliant
  15. Outdoor powder coating for high corrosion and UV resistance.

Hitch

Hitch models: Numberplate holder not included.

Towball

The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don’t exceed this before using any tow ball mounted bike carrier.

Requires 65mm clearance from center of tow ball to rear of vehicle.

NOT TO BE USED ON MOTORHOMES, CARAVANS OR TRAILERS

Technical Specifications

 T1

T2

T2 XL
Max number of bikes:

1

2

2
Max weight per bike

30kg

30kg

30kg

Max load capacity

60kg

60kg

60kg

Max tire size

4"

4″

4.8"

Fits 50mm ISO tow ball

Yes

Yes

Yes

Dimensions (width x depth)

134 x 57 cm (measured from the centre of the tow ball mount to the outside edge of the number plate holder).

 134 x 72 cm(measured from the centre of the tow ball mount to the outside edge of the number plate holder). 127 x 69 cm(measured from the centre of the tow ball mount to the outside edge of the number plate holder).

Weight

13.5kg

 18.1kg 20.8kg

Tilting:

Yes

 Yes Yes

Integrated lighting board

YEs

 Yes Yes

Lighting board plug type

7 pin

 7-pin 13 pin (7 pin flat plug for AUS/NZ)

Bike carrier to tow ball lock

Yes

 Yes Yes

Bike carrier to bike lock

Yes

 Yes Yes


XL

Key Differences

  • Patented clamping system fits all standard 50mm tow balls
  • Wide wheel holders with protective covers fit up to 4.8" tyres
  • Extra large vertical sliding frame allows a greater range of bikes to be mounted, making it easier to mount bikes with sloping top tubes or low step-through frames

The maximum permitted load you can carry is also determined by the tow bar nose weight; you will need to check you don't exceed this before using any tow ball mounted bike carrier.

Requires 65mm clearance from center of tow ball to rear of vehicle.

Not suitable for trailers, campers, or RVs. These vehicles need special racks that require much stronger specifications due the dynamics involved.
